Get Shipment Status via Webhook

How to add webhook on Bosta's Dashboard

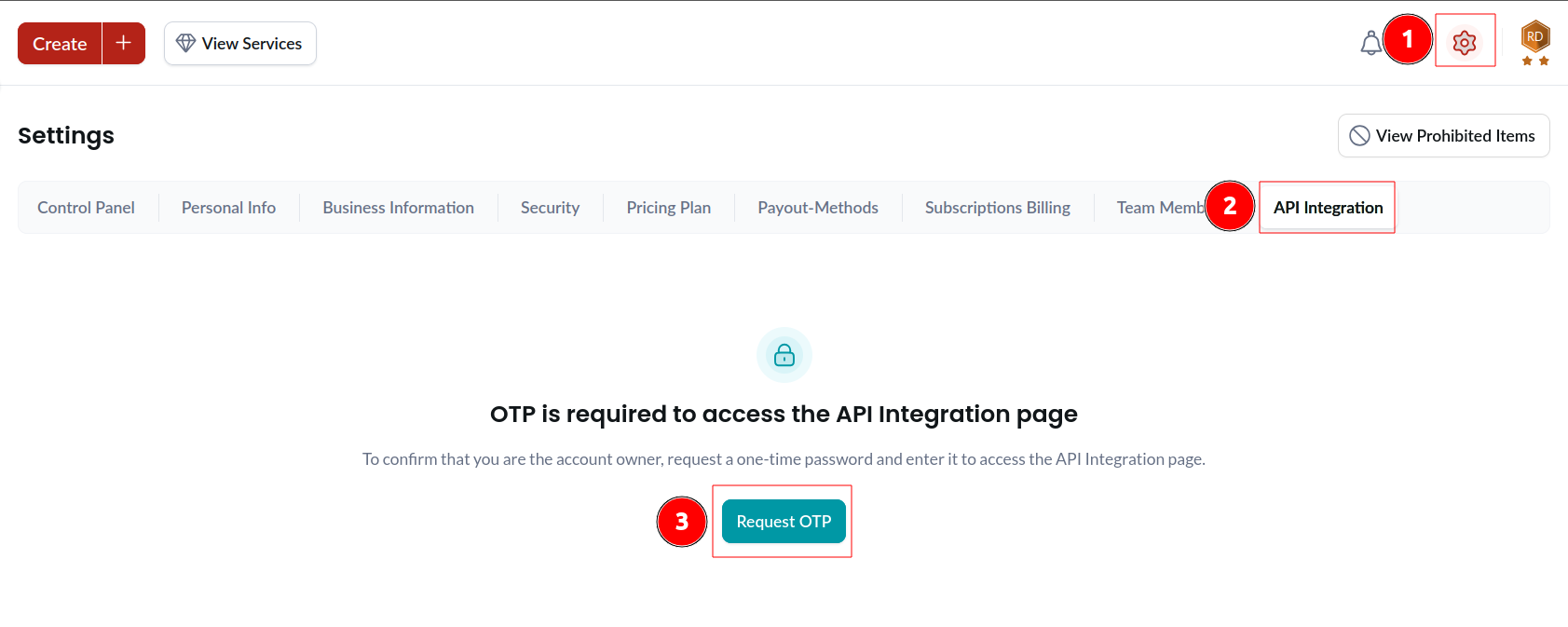

1. Open the Settings from your Business Dashboard.

2. Go to API Integration.

3. Click Request OTP and enter the code sent to you.

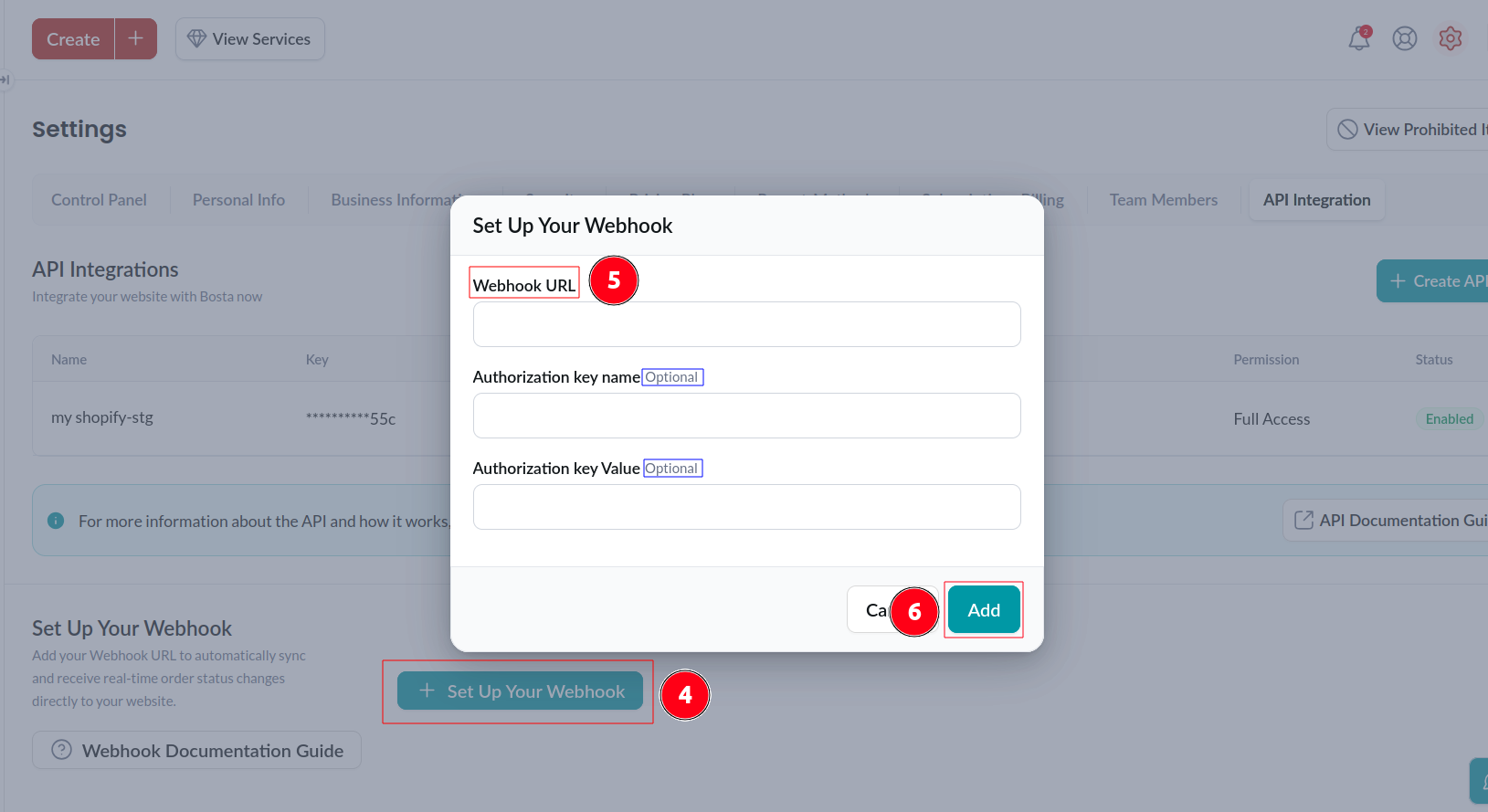

4. Scroll down to Set Up Your Webhook.

5. Add your Webhook URL. (mandatory)

6. You have the option to add an Authorization Key and assign it a custom name.

Please note that both the key name and its corresponding value must be entered together; neither field can be submitted independently.

Notes:

• Your webhook is triggered only when an order status changes, not on order creation.
• Once added to your account, the webhook is securely saved in Bosta’s database, so it does not need to be included in the order creation API request.

How it works

1. Bosta webhooks to keep your orders synced with the latest state on our system by sending a request to a specific endpoint that you will provide us with.
2. After every change in the state of the order. We will send a POST request to your endpoint with this update

How to use

In case you have not added your webhook to your account through Bosta’s Dashboard using the steps above follow the steps below:

1. While creating your order using the following endpoint /api/v2/deliveries?apiVersion=1 you need to set the following parameter in the request body

{
 webhookUrl: "Your endpoint url" // Type String
 webhookCustomHeaders: "any custom headers you want to be send with the request (Not Required)" // Type object
}

Example of the parameters

{
 webhookUrl: "https://YourEndpointUrl"
 webhookCustomHeaders:{
        "Authorization" : "Basic abc123"
    }
}

2. After any change in the state you will receive the following request on the endpoint you provide us with: POST https://yourendPoint with the following body

{
  "_id": "The order id",
  "trackingNumber": "The order tracking Number",
  "state": "A code representing the current state of the order",
  "type": "SEND | EXCHANGE | CUSTOMER_RETURN_PICKUP | RTO | SIGN_AND_RETURN | FXF_SEND (fulfillment)",
  "cod": "The amount collected from you customer", // only in Deliverd state,
  "timeStamp": "The timestamp at which the state was changed",
  "isConfirmedDelivery":"Boolean value",// Will be sent as a proof of delivery
  "deliveryPromiseDate":"Date in ('DD-MM-YYYY') format", // e.x 23-02-2023
  "exceptionReason": "Reason (NDR)", // only in Exception state,
  "exceptionCode":"A code representing the exception reason ",// All codes is listed below
  "businessReference": "The businessReference value that was sent in the creation request",
  "numberOfAttempts": "The number of attempts that Bosta made to deliver the shipment to your customer"
}

• The type of the fields in the request body:

Field	Type
_id	String
trackingNumber	String
state	Number
type	String
cod	Number
timeStamp	Number
isConfirmedDelivery	Boolean
deliveryPromiseDate	Date
exceptionReason	String
exceptionCode	Number
businessReference	String
numberOfAttempts	Number

• Examples of the request body:

{
  // Example of the data in a normal state change.
  "_id": "15LmfpKYp0YILntA3jbyd",
  "trackingNumber": 48089608,
  "state": 24,
  "type": "SEND",
  "timeStamp": 1689252908261,
  "deliveryPromiseDate": "13-07-2023",
  "numberOfAttempts": 0
}

{
  // Example of the data in a exception case.
  "_id": "15LmfpKYp0YILntA3jbyd",
  "trackingNumber": 48089608,
  "state": 47,
  "type": "SEND",
  "timeStamp": 1689253131024,
  "deliveryPromiseDate": "15-07-2023",
  "numberOfAttempts": 1,
  "exceptionReason": "Postponed - the customer requested postponement for another day.",
  "exceptionCode": 3
}

Bosta States

• The following is a table of the order different states and the code representing it which will be send to you over the webhook request

State Name	Dashboard State Name	Type	State Code
Pickup requested	New	All (Except Cash Collection)	10
Waiting for route	In progress	Cash Collection	11
Route Assigned	In progress	All Types	20
Picking up from consignee	Heading to customer	CRP, Exchange	22
Picking up	Heading to customer	Cash Collection	40
Picked up from business	Picked up	Send, Exchange	21
Picked up from consignee	Picked up	CRP, Exchange	23
Picked up	Heading to customer	Send, Fulfillment Send,	41
Picked up	Heading to you	Exchange, CRP, RTO	41
Received at warehouse	In progress	All (Except Cash Collection)	24
Fulfilled	Fulfilled	Fulfillment	25
In transit between Hubs	In progress	All (Except Cash Collection)	30
Delivered	Successful	Send, Fulfillment Send, Cash Collection	45
Returned to business	Successful	Exchange, CRP, RTO	46
Exception	In progress	All Types	47
Canceled	In progress	All Types	49
Terminated	Terminated	All Types	48
Lost	Unsuccessful	All Types	100
Damaged	Unsuccessful	All Except (Cash Collection)	101
Returned to stock	Returned	Fulfillment	60
Investigation	In progress	All	102
Awaiting your action	Awaiting your action	Exchange, CRP, RTO	103
Archived	Archived	All (Except Cash Collection)	104
On hold	In progress	All (Except Cash Collection)	105

Exception reasons (NDRs)

We can divide our exception reasons into two cases:

• Forward Exception: This exception happens when we try to deliver the order to the customer.

  Reason name	Code
  Retry delivery - the customer is not in the address.	1
  Retry delivery - the customer changed the address.	2
  Postponed - the customer requested postponement for another day.	3
  Cancellation - the customer wants to open the shipment.	4
  Waiting for data modification - address or phone number not clear/wrong.	5
  Cancellation - cancellation of delivery at the request of the sender.	6
  Customer is not answering.	7
  Cancellation - the customer refuses to receive the shipment.	8
  Cancellation - the delivery address is outside Bosta coverage area.	12
  Waiting for data modification - address not clear.	13
  Waiting for data modification - wrong phone number.	14
  Bad Weather.	100
  Suspicious consignee.	101

• Return Exception: This exception happens when we try to deliver the order to the business.

  Reason name	Code
  Retry return - Business changed the address.	20
  Postponed - Business requested postponement for another day.	21
  Waiting for data modification: address or phone number not clear/wrong.	22
  Business is not answering.	23
  Business refused to receive the shipment.	24
  Retry return - Business is not in the address.	25
  Bad Weather.	100
  Suspicious consignee.	101
  The order is damaged.	26
  Empty order.	27
  The order is incomplete.	28
  The order does not belong to the business.	29
  The order was opened while it should not.	30

More Info

The following points representing some ambiguous states and when it will be pushed:

• Picking up (Only for Cash Collection): When Bosta star is out to collect the money from the end customer
• Picked up: when Bosta star picks the order from our warehouses to be delivered to its final destination for example:
  • when normal order is picked up to be delivered to the end customer
  • when a return order is picked up to be returned to your premises
• Terminated: It will be pushed when we fail to pick up your return order or collect your money from the end customer for 3 times. our system will then automatically change the order state to Terminated and push the notification
• Awaiting your action: When Bosta fails to return a shipment for your premises for 3 times due to one of the return exceptions mentioned in the previous email.

The following points represent some states that have different meanings based on the order type:

• Picked up:
  • Out for delivery: when the order type is SEND
  • Out for return: when the order type is CRP, RTO, EXCHANGE
• Picking up from consignee:
  • Out for pickup: when the order type is CRP
  • Out for exchange: When the order type is EXCHANGE
